Einzelheiten zum Produkt
Herkunftsort: Henan, China
Markenname: Zhenglan Cable
Zertifizierung: ISO 9001:2020, ISO 14001:2020
Modellnummer: Leiter Wire 150/25sqmm ACSR
Zahlungs- und Versandbedingungen
Min Bestellmenge: 1000 Meter
Preis: Negotiation
Verpackung Informationen: Völlig hölzerne Trommel, hölzerne Stahltrommel, völlig Stahltrommel oder besonders angefertigt
Lieferzeit: 15 Werktage
Zahlungsbedingungen: L/C, T/T, Western Union
Versorgungsmaterial-Fähigkeit: 20ton/day
Material: |
AL/Steel |
Standard: |
IEC61089, En50182 |
Kern: |
150 |
characted: |
bloßer Leiter |
Anwendung: |
Obenliegender Getriebegebrauch |
Gesamtfläche: |
18.7~1211 |
Hafen: |
Qingdao |
Material: |
AL/Steel |
Standard: |
IEC61089, En50182 |
Kern: |
150 |
characted: |
bloßer Leiter |
Anwendung: |
Obenliegender Getriebegebrauch |
Gesamtfläche: |
18.7~1211 |
Hafen: |
Qingdao |
Leiter Wire 150/25sqmm ACSR 100% prüfte ISO-14001:2005 EN50182
Anwendung:
ACSR-Leiter sind für Getriebe der elektrischen Leistung über langen Abständen weitverbreitet, da sie für lange obenliegende Linien Spannen ideal sind. Sie werden auch als Bote für stützende obenliegende elektrische Kabel benutzt.
Elektrische Eigenschaften:
density@20-ºC | Aluminium: 2,703 kg/dm |
Galvanisierter Stahl: 7,80 kg/dm | |
Temperatur-Coefficient@20-°C | Aluminium: 0,00403 (°C) |
resistivity@20-°C | Aluminium: Sollte 0,028264 nicht übersteigen |
lineares Expansivity
|
Aluminium: 23 x10 (°C) |
Galvanisierter Stahl: 11,5 x10 (1/°C) |
Betriebsbedingungen:
Umgebende Temperatur | -5°C - 50°C |
Wind-Druck | 80 – 130kg/m |
Seismische Beschleunigung | 0.12 - 0.05g |
Isokeraunic-Niveau | 10 – 18 |
relative Luftfeuchtigkeit | 5 – 100% |
Leiter Wire 150/25sqmm ACSR 100% prüfte technische Leistungsblätter ISO-14001:2005 EN50182:
Zahlen von Drähten | Module von Elastizität | Coeficient der linearen Expansion | |||
AL | STAHL | Kg/mm2 | Lb/in2 | 1/Cº | 1/Fº |
6 | 1 | 81 | 11,5 x106 | 19,1 x10-6 | 10,6 x10-6 |
6 | 7 | 77 | 11,0 x106 | 19,8 x10-6 | 11,0 x10-6 |
12 | 7 | 107 | 15,2 x106 | 15,3 x10-6 | 8,5 x10-6 |
18 | 1 | 67 | 9,5 x106 | 21,2 x10-6 | 11,8 x10-6 |
24 | 7 | 74 | 10,5 x106 | 19,6 x10-6 | 10,9 x10-6 |
26 | 7 | 77 | 10,9 x106 | 18,9 x10-6 | 10,5 x10-6 |
28 | 7 | 79 | 11,2 x106 | 18,4 x10-6 | 10,2 x10-6 |
30 | 7 | 82 | 11,6 x106 | 17,8 x10-6 | 9,9 x10-6 |
30 | 19 | 80 | 11,4 x106 | 18,0 x10-6 | 10,0 x10-6 |
32 | 19 | 82 | 11,7 x106 | 17,5 x10-6 | 9,7 x10-6 |
54 | 7 | 70 | 9,9 x106 | 19,3 x10-6 | 10,7 x10-6 |
54 | 19 | 68 | 9,7 x106 | 19,4 x10-6 | 10,8 x10-6 |
BAU-PARAMETER
• Iec 60189
Code | Nominaler Bereich | Schiffbruch | Gesamtdurchmesser | Gewicht | Bruchlast | Elektrischer Widerstand @20° | Gegenwärtiges Rating* | |||
AL | STAHL | SUMME | AL | STAHL | ||||||
mm2 | mm2 | mm2 | No.xmm | No.xmm | Millimeter | Kg/Km | KN | Ω/Km | ||
16 | 16 | 2,67 | 18,7 | 6/1.84 | 1/1.84 | 5,52 | 64,6 | 6,08 | 1,7934 | 85 |
25 | 25 | 4,17 | 29,2 | 6/2.30 | 1/2.30 | 6,9 | 100,9 | 9,13 | 1,1478 | 112 |
40 | 40 | 6,67 | 46,7 | 6/2.91 | 1/2.91 | 8,73 | 161,5 | 14,4 | 0,7174 | 150 |
63 | 63 | 10,5 | 73,5 | 6/3.66 | 1/3.66 | 10,98 | 254,4 | 21,63 | 0,4555 | 198 |
100 | 100 | 16,7 | 117 | 6/4.61 | 1/4.61 | 13,83 | 403,8 | 34,33 | 0,2869 | 263 |
125 | 125 | 6,94 | 132 | 18/2.97 | 1/2.97 | 14,85 | 397,9 | 29,17 | 0,2304 | 299 |
125 | 125 | 20,4 | 145 | 26/2.47 | 7/1.92 | 15,64 | 503,9 | 45,69 | 0,231 | 302 |
160 | 160 | 8,89 | 169 | 18/3.36 | 1/3.36 | 16,8 | 509,3 | 36,18 | 0,18 | 347 |
160 | 160 | 26,1 | 186 | 26/2.80 | 7/2.18 | 17,74 | 644,9 | 57,69 | 0,1805 | 351 |
200 | 200 | 11,1 | 211 | 18/3.76 | 1/3.76 | 18,8 | 636,7 | 44,22 | 0,144 | 398 |
200 | 200 | 32,6 | 233 | 26/3.13 | 7/2.43 | 19,81 | 806,2 | 70,13 | 0,1444 | 402 |
250 | 250 | 24,6 | 275 | 22/3.80 | 7/2.11 | 21,53 | 880,6 | 68,72 | 0,1154 | 458 |
250 | 250 | 40,7 | 291 | 26/3.50 | 7/2.72 | 22,16 | 1007,7 | 87,67 | 0,1155 | 461 |
315 | 315 | 21,8 | 337 | 45/2.99 | 7/1.99 | 23,91 | 1039,6 | 79,03 | 0,0917 | 526 |
315 | 315 | 51,3 | 366 | 26/3.93 | 7/3.05 | 24,87 | 1269,7 | 106,83 | 0,0917 | 530 |
400 | 400 | 27,7 | 428 | 45/3.36 | 7/2.24 | 26,88 | 1320,1 | 98,36 | 0,0722 | 607 |
400 | 400 | 51,9 | 452 | 54/3.07 | 7/3.07 | 27,63 | 1510,3 | 123,04 | 0,0723 | 610 |
450 | 450 | 31,1 | 481 | 45/3.57 | 7/2.38 | 28,56 | 1485,2 | 107,47 | 0,0642 | 651 |
450 | 450 | 58,3 | 508 | 54/3.26 | 7/3.26 | 29,34 | 1699,1 | 138,42 | 0,0643 | 655 |
500 | 500 | 34,6 | 535 | 45/3.76 | 7/2.51 | 30,09 | 1650,2 | 119,41 | 0,0578 | 693 |
500 | 500 | 64,8 | 565 | 54/3.43 | 7/3.43 | 30,87 | 1887,9 | 153,8 | 0,0578 | 697 |
560 | 560 | 38,7 | 599 | 45/3.98 | 7/2.65 | 31,83 | 1848,2 | 133,74 | 0,0516 | 741 |
560* | 560 | 70,9 | 631 | 54/3.63 | 19/2.18 | 32,68 | 2103,4 | 172,59 | 0,0516 | 745 |
630 | 630 | 43,6 | 674 | 45/4.22 | 7/2.81 | 33,75 | 2079,2 | 150,45 | 0,0459 | 794 |
630* | 630 | 79,8 | 710 | 54/3.85 | 19/2.31 | 34,65 | 2366,3 | 191,77 | 0,0459 | 798 |
710 | 710 | 49,1 | 759 | 45/4.48 | 7/2.99 | 35,85 | 2343,2 | 169,56 | 0,0407 | 851 |
710* | 710 | 89,9 | 800 | 54/4.09 | 19/2.45 | 36,79 | 2666,8 | 216,12 | 0,0407 | 856 |
800* | 800 | 34,6 | 835 | 72/3.76 | 7/2.51 | 37,61 | 2480,2 | 167,41 | 0,0361 | 910 |
800* | 800 | 66,7 | 867 | 84/3.48 | 7/3.48 | 38,28 | 2732,7 | 205,33 | 0,0362 | 912 |
800* | 800 | 101 | 901 | 54/4.34 | 19/2.61 | 39,09 | 3004,9 | 243,52 | 0,0362 | 916 |
900* | 900 | 38,9 | 939 | 72/3.99 | 7/2.66 | 39,9 | 2790,2 | 188,33 | 0,0321 | 972 |
900* | 900 | 75 | 975 | 84/3.69 | 7/3.69 | 40,59 | 3074,2 | 226,5 | 0,0322 | 974 |
1000* | 1000 | 43,2 | 1043 | 72/4.21 | 7/2.80 | 42,08 | 3100,3 | 209,26 | 0,0289 | 1031 |
1120* | 1120 | 47,3 | 1167 | 72/4.45 | 19/1.78 | 44,5 | 3464,9 | 234,53 | 0,0258 | 1096 |
1120* | 1120 | 91,2 | 1211 | 84/4.12 | 19/2.47 | 45,31 | 3811,5 | 283,17 | 0,0258 | 1100 |
1250* | 1250 | 102 | 1352 | 84/4.35 | 19/2.61 | 47,85 | 4253,9 | 316,04 | 0,0232 | 1165 |
1250* | 1250 | 52,8 | 1303 | 72/4.70 | 19/1.88 | 47 | 3867,1 | 261,75 | 0,0231 | 1163 |
1120* | 1120 | 91,2 | 1211 | 84/4.12 | 19/2.47 | 45,31 | 3811,5 | 283,17 | 0,0258 | 1100 |

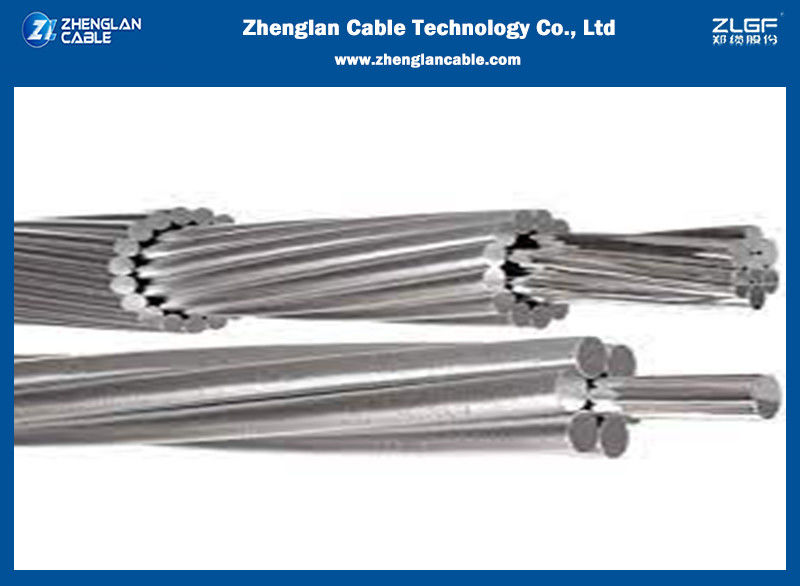

Leiter Wire 150/25sqmm ACSR 100% prüfte Bilder ISO-14001:2005 EN50182:
